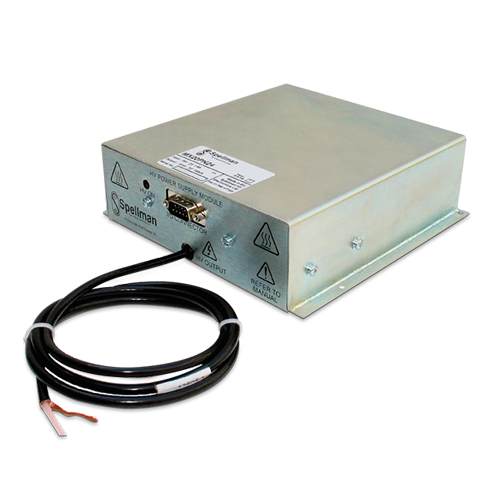

MX20
- 20kV Hot Switchable Polarity Reversible Via a Logic Signal
- Well-Regulated, Low Ripple
- Polarity Reversal Within 500mS
- Flying High Voltage Output Cable
- Current Control Option
*Note: All specifications are subject to change without notice. Please consult the English PDF version of this datasheet for the most up-to-date revision.
High Performance High Voltage Power Supply
Spellman’s MX20 is a well-regulated high performance DC-DC converter featuring a “hot switchable” polarity reversal capability. The MX20’s low ripple specification makes it ideal for Mass Spectrometry applications; especially security detection systems, Dynodes, sample ionization as well as capillary electrophoresis and electrostatic printing applications.
The MX20 is rated at 20kV @ 100uA and is packaged in a shielded metal enclosure. This unit features a logic signal input to control output polarity reversal. A HV inhibit feature, along with voltage and current monitors are provided. Easily customized to meet OEM requirements, the MX20 can be provided with current control, improved ripple performance and higher voltage and current capabilities.
Typical applications:
- Mass Spectrometry
- Capillary Electrophoresis
- Electrostatic Printing
Specifications
(Ref. 128048-001 REV. K)
Input Voltage:
+24Vdc, ±1.2 volts
Input Current:
<500mA continuous
<1.2A during reversing
Output Voltage:
±500Vdc to ±20kV
Output Current:
0 to 100uA max.
Polarity:
Remotely reversible via logic signal, 500mS to settle to ±2%, 1 Hz maximum switch rate
Voltage Regulation:
Load: 0.02% of maximum output voltage for a no load to full load change
Line: 0.01% of maximum output voltage for a 1 volt input line change
Current Regulation: (VCC Option)
Load: 0.1% of maximum rated current for a 0 to 100% voltage change
Line: 0.01% of maximum rated current for a 1 volt input line change
Voltage/Current Programming:
0 to 10 volts corresponds to 0 to 100% of rated output voltage/current
Voltage/Current Monitor:
0 to 10 volts corresponds to 0 to 100% of rated output voltage/current
Programming and Monitor Accuracy:
±2% Voltage Programming/Monitor
±5% Current Programming/Monitor
Ripple:
≤ 0.0025% Volts p-p
Stability:
0.1% per hour after 1 hour warmup
Temperature Coefficient:
≤ 100ppm per degree C
Environmental:
Temperature Range:
Operating: 0°C to 40°C
Storage: -40°C to 85°C
Humidity:
10% to 90%, non-condensing
Cooling:
Convection cooled
Dimensions:
2.05. H X 6.61. W X 6.50. D (52mm X 168mm X 165mm)
Weight:
Approximately 5.51 pounds (2.5kg)
Interface/Power Connector:
9 pin male D connector
HV Output Connector:
39.4. (1m) Flying Lead of URM76 LSF cable
Regulatory Approvals:
Compliant to EEC EMC Directive. Compliant to EEC Low Voltage Directive.
OPTIONS:
VCC: Variable Current Control
MX20 TERMINAL BLOCK 9 PIN
| Pin | Signal | Signal Parameters |
|---|---|---|
| 1 | Voltage Monitor | 0-10V=0-100% of Rated Output |
| 2 | External Inhibit Input | Open or >10V = “OFF”; <4V = “ON” |
| 3 | Current Programming Input | 0-10Vdc = 0-100% of Rated Output (on VCC option) |
| 4 | Signal Ground | Signal Ground |
| 5 | Current Monitor | 0-10Vdc = 0-100% of Rated Output |
| 6 | Polarity Control Input | Open or >10V = “NEGATIVE”; <4V = “POSITIVE” |
| 7 | Voltage Programming Input | 0-10Vdc = 0-100% of Rated Output |
| 8 | +24V Input | +24V Input |
| 9 | Power Ground | Power Ground |
| How to Order: |
|---|
| Standard: PART NO.:MX20PN24 |
| VCC Option: PART NO.:MX20PN24/VCC |
Tables & Diagrams
DIMENSIONS: in.[mm]
SIDE VIEW
TOP VIEW
