MPD Series
- Extremely Compact 10W High Performance Module
- Multiple Control Interfaces: Differential Analog, RS-232 and RS-485
- Voltage and Current Monitors
- High Stability, Low TC
- Ultra Low Ripple and Noise, Down to 1/f Band
- Free GUI for Testing and Development Work
- Digital Control Features: Multiple Units Operation, Current Control, Status Flags and Wobbler Function
*Note: All specifications are subject to change without notice. Please consult the English PDF version of this datasheet for the most up-to-date revision.
Spellman MPD Series of High Voltage 10 Watt Modules
Spellman’s MPD series is a family of high voltage, high performance 10 Watt modules with output voltages ranging from 1kV to 30kV.
Spellman’s hybrid topology of linear and switch mode power conversion techniques delivers ultra-low noise, excellent ripple and stability performance all within its compact footprint.
The MPD series can be controlled via analog or digital interfaces, both provided via a standard 15-pin D-type connector.
In analog mode, the unit features a differential amplifier input for the voltage programming signal to improve immunity from external system noise and address any offset issues. In digital mode, RS-232 and RS-485 interfaces provide additional features: current control, status flags, multiple units operation (RS-485 only), and wobbler function.
Spellman’s proprietary HV technology coupled with SMT circuitry results in an ultra-compact and lightweight module, available as either a positive or negative supply, that is ideal for OEM applications.
Typical Applications
- Mass Spectrometry
- Electrostatic Lenses
- Automatic test equipment
- Capillary Electrophoresis
- Electron and Ion Beams
- Microchannel Plate Detectors
- Electrostatic Printing
- Scintillators
- Electron Multipliers
- Electrospinning
- Electrostatic Chucks
- Photomultiplier Tubes
Specifications
(Ref. 128142-001 REV. F)
SPECIFICATIONS
Input Voltage:
+24 Vdc, ±2Vdc
Input Current:
≤1 amp maximum
Output Voltage:
7 models available from 1kV to 30kV
Output Polarity:
Positive or negative, specify at time of order
Power:
10 watts, maximum
Voltage Regulation:
Line: For a 1V line change 10ppm
Load: 0-100% load 10ppm
Current Limit:
110% of rated output current. In digital control mode, the current limit is settable from 0 to 110% of the rated output current.
Ripple:
See “drift, ripple and noise” table
Stability:
After one hour warm up period.
10ppm/hour
25ppm/8 hours
100ppm/1000 hours
Temperature Coefficient:
10ppm per degree C
Protection:
Arc and short circuit protected. Not designed to withstand continuous arcing. The unit monitors and reports faults through status flags (digital com). When a trip occurs, the output is disabled and the unit can be reset through enable, fault reset or power cycle.
Control Software:
A free GUI can be provided for customer testing and development work.
Main Features:
-Voltage control and enable inputs
-Voltage and current monitor outputs
-10V voltage reference output
Digital Features:
The following features are available when operating in digital control mode.
-Multiple units operation (RS-485 only)
-Current control
-Wobbler function: sine wave superimposed to voltage output (programmable amplitude 0-300V, period 0.1 to 2s)
Evironmental:
Operating: 0˚C to 50˚C
Storage: -35˚C to 85˚C
Environmental:
Temperature Range:
Operating: 0˚C to 50˚C
Storage: -35˚C to 85˚C
Humidity:
20% to 85% RH, non-condensing
Cooling:
Convection cooled
Dimensions:
1kV-10kV: 1.18˝ H X 2.75˝ W X 5.12˝ D (30mm x 70mm x 130mm)
15kV-20kV: 1.18˝ H X 2.75˝ W X 6.50˝ D (30mm x 70mm x 165mm)
30kV-20kV: 1.38˝ H X 2.95˝ W X 8.46˝ D (35mm x 75mm x 215mm)
Weight:
1kV-10kV: 14.82 oz. (420g)
15kV-20kV: 22.93 oz. (650g)
30kV: 33.51 oz. (950g)
Interface Connector:
15 pin male D connector
Output Connector:
Captive 39.4˝ (1 meter) long un-terminated and shielded HV cable:
1kV to 20kV units: HRG58
30kV units: LEMO 130666
Regulatory Approvals:
Compliant to EEC Low Voltage Directive. UK Conformity Assessed. UL/CUL recognized, File E354595. RoHS Compliant.
Note: for 1kV and 30kV units approvals, please inquire.
MPD SELECTION TABLE
Model | Output Voltage | Output Current |
---|---|---|
MPD1*10/24 | 1kV | 10mA |
MPD2.5*10/24 | 2.5kV | 4.00 mA |
MPD5*10/24 | 5kV | 2mA |
MPD10*10/24 | 10kV | 1mA |
MPD15*10/24 | 15kV | 0.66mA |
MPD20*10/24 | 20kV | 0.5mA |
MPD30*10/24 | 30kV | 0.33mA |
*Specify “P” for positive polarity or “N” for negative polarity. Custom units available.
MPD DRIFT, RIPPLE and NOISE
Model | 3mHz-30mHz | 30mHz-3Hz | 3Hz-30Hz | 30Hz-300Hz | 300Hz-30kHz | 30kHz-3MHz |
---|---|---|---|---|---|---|
MPD1 | 7mV | 7mV | 7mV | 4mV | 4mV | 4mV |
MPD2.5 | 10mV | 10mV |
10mV | 5mV | 5mV | 5mV |
MPD5 | 10mV | 10mV | 10mV | 10mV | 10mV | 10mV |
MPD10 | 20mV | 20mV | 20mV | 20mV | 20mV | 20mV |
MPD15 | 30mV | 30mV | 30mV | 30mV | 30mV | 30mV |
MPD20 | 40mV | 40mV | 40mV | 40mV | 40mV | 40mV |
MPD30 | 60mV | 60mV | 60mV | 60mV | 60mV | 60mV |
MPD EXTERNAL INTERFACE—15 PIN MALE D CONNECTOR
Pin | Signal | Parameters |
---|---|---|
1 | Power Ground | Ground |
2 | +24Vdc Input | +24Vdc @ 1 amp maximum |
3 | Voltage Monitor Output | Voltage monitor 0-10Vdc for 0 to full scale output ±1% (wrt signal ground) Zout=10kΩ |
4 | Voltage Reference Output | 10Vdc @ 10mA maximum |
5 | Voltage Program Input | 0 to 10Vdc=0 to 100% rated output ±1%, Zin=10MΩ |
6 | Voltage Program Differential Amplifier Output |
0 to 10Vdc=0 to 100% rated output, Zout =10kΩ |
7 | Voltage Program Differential Amplifier Input—Positive |
0 to 10Vdc differential between pin 7 and pin 9 = 0 to 100% of rated output, diode clamped to ground, Zin =38kΩ |
8 | Current Monitor Output | Voltage monitor 0 to 10Vdc for 0 to full scale output ±1% (wrt signal ground) Zout=10kΩ |
9 | Voltage Program Differential Amplifier Input—Negative |
0 to 10Vdc differential between pin 7 and pin 9 = 0 to 100% of rated output, diode clamped to ground, Zin =38kΩ |
10 | Voltage Program Digital Output |
0 to 10Vdc = 0 to 100% rated output, Zout =10kΩ |
11 | Analog Signal Ground | Signal ground for control and monitoring |
12 | Enable Input | Low = Enable, TTL, CMOS, open collector compliant |
13 | Digital Mode | RS-232 or RS-485 configuration Low = RS-485, Open circuit = RS-232 |
14 | RS-232 TxD/RS-485 (-) | Transmit data (output) wrt pin 1 or RS-485 inverting |
15 | RS-232 RxD/RS-485 (+) | Receive data (input) wrt pin 1 or RS-485 non inverting |
Digital Control – Connect pin 5 to pin 10
Analog Control – Connect pin 5 to pin 6
Tables & Diagrams
DIMENSIONS: in.[mm]
1kV-20kV

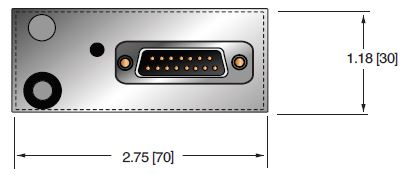

FRONT VIEW

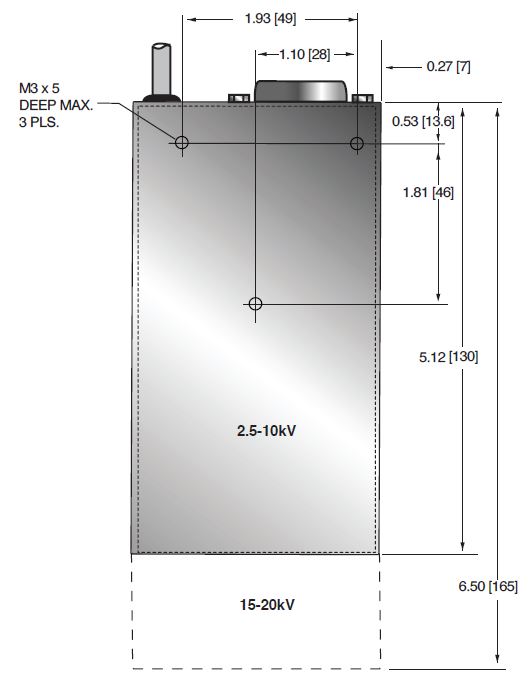

BOTTOM VIEW
SIDE VIEW
30kV
FRONT VIEW
BOTTOM VIEW
SIDE VIEW
