XLFシリーズ

最大出力電圧60kV
内蔵浮遊フィラメント電源「ホットカソード」
負極性
ローカル、リモートプログラミング

*注: すべての仕様は予告なく変更される場合があります。最新版についてはこのデータシートの英語PDFをご覧ください。

CEマーク

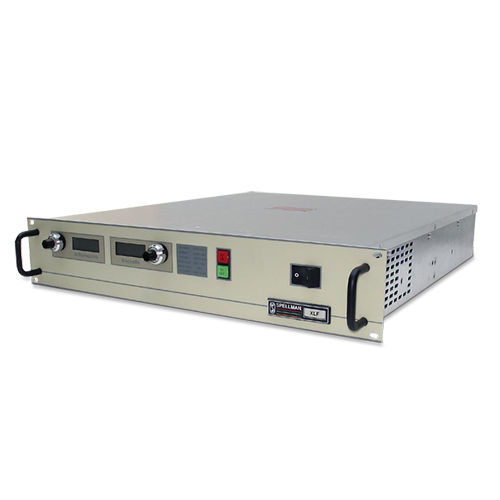

600～1200W産業用X線ジェネレーター

XLFシリーズは、X線発生用高圧直流電源で出力電圧範囲は 60kVまでです。また、高精度な共振コンバータ技術により、リップルは大変低くなっています。出力電圧および管電流の安定度により、既存の技術での性能を大幅に改善しました。このシリーズは、カソードにリファレンスしたACフィラメントを含む、X線用途に必要な電力制御、サポート機能を提供しています。また、ローカル及びリモートのプログラム、モニタリング、安全インターロックや短絡、過負荷の保護回路なども内蔵されています。

用途

プラスチック選別
鉱石検査
ダイヤモンド検査

Specifications

^{(Ref. 128011-001 REV. N)}

Input Voltage:

XLF 600W:

115Vac ±10% @ 11.4A, 50-60Hz single phase

220Vac ±10% @ 5.9A, 50-60Hz single phase

XLF 1200W:

220Vac ±10% @ 11.8A, 50-60Hz single phase

Voltage and Current Control:

Local: continuously adjustable from zero to maximum rating via a ten-turn potentiometer

Remote: 0 to +10Vdc proportional from 0 to full output

Accuracy: ±1%

Input Impedance: 10Mohm

Filament:

12 volts @ 5 amps, preheat level is 0.45 amps in standby

Voltage Regulation:

Load: 0.005% of full output voltage no load to full load

Line: 0.005% for input voltage range change

Current Regulation:

Load: 0.05% of full current ±100µA from 0 to full voltage

Line: 0.05% of rated current over specified input range

Ripple:

0.03% rms below 1kHz

0.75% rms above 1kHz

Temperature Coefficient:

100ppm/°C.

Stability:

0.01%/8 hrs after 1/2 hour warm-up
0.02% per 8 hours (typical)

Cooling:

Fan cooled

Metering:

Digital voltage and current meters (3.5 digits), 1% accuracy

Voltage and Current Monitors:

0 to +10Vdc proportional to rated output

HV Output:

75kV, 3 conductor Federal Standard X-Ray connector

I/O Connectors:

25 pin D-type for control interface with mating connector provided

Dimensions:

3.5”H x 19”W x 20”D (8.9cm x 48.3cm x 50.8cm)

Regulatory Approvals:

Compliant to EEC EMC Directive. Compliant to EEC Low Voltage Directive. RoHS compliant

FRONT PANEL STATUS INDICATORS:

Overvoltage Voltage Control Mode
Overtemperature Current Control Mode
Regulation Error Interlock Open
Arc Interlock Closed
HV ON: Red HV OFF: Green

OPTIONS

APT - Adjustable Power Trip
AT - Arc Trip
SS(x) - Non-Standard Slow Start
NSS - No Slow Start
IO - Instant ON
SL - Slides

Electronic Component (Power Source)

XLF series is intended for installation as a component of a system. It is designed to meet CE standards, with conditions of acceptance often being: customer provided enclosure mounting, EMC filtering, and appropriate protection, and isolation devices. The XLF series is not intended to be operated by end users as a stand-alone device. The XLF series power supply can only be fully assessed when installed within a system, and as a component part within that system.

600W, 1200W XLF SELECTION TABLE

600 Watt			1200 Watt
kV	mA	Model	kV	mA	Model
30	20	XLF30N600	30	40	XLF30N1200
40	15	XLF40N600	40	30	XLF40N1200
50	12	XLF50N600	50	24	XLF50N1200
60	10	XLF60N600	60	20	XLF60N1200

JB1 CONNECTOR 25 PIN

Pin	Signal	Signal Parameters
1	Power Supply Common	Signal Ground
2	External Inhibit	Ground=Inhibit, Open=HV On
3	External Interlock	+15V at Open, <15mA at Closed
4	External Interlock Return	Return for Interlock
5	Current Monitor	0 to 10V=0 to 100% Rated Output
6	kV Test Point	0 to 10V=0 to 100% Rated Output
7	+10V Reference	+10Vdc @ 1mA Max
8	Remote Current Program In	0 to 10V=0 to 100% Rated Output
9	Local Current Program Out	Front Panel Program Voltage
10	Remote Voltage Program In	0 to 10V=0 to 100% Rated Output
11	Local Voltage Program Out	Front Panel Program Voltage
12	Power Monitor	0 to 10V=0 to 100% Rated Output (Optional)
13	Remote Power Program In	0 to 10V=0 to 100% Rated Output (Optional)
14	Local HV Off Out	+15V at Open, <25mA at Closed Connect to HV OFF for Fp Operation
15	HV Off	+15V at Open, <25mA at Closed Connect to HV OFF for Fp Operation
16	Remote HV On	+15V, 10mA Max=HV Off 0=HV On, +15V, 10mA Max=HV Off
17	Remote HV Off Indicator	+15V, 10mA Max=HV Off 0=HV On, +15V, 10mA Max=HV Off
18	Remote HV On Indicator	0=HV Off, +15V, 10mA Max=HV On
19	Remote Voltage Mode	Open Collector 50V Max, 10mA Max On=Active
20	Remote Current Mode	Open Collector 50V Max, 10mA Max On=Active
21	Remote Power Mode	Open Collector 50V Max, 10mA Max On=Active
22	Remote PS Fault	0=Fault, +15V, 0.1mA Max=No Fault
23	+15V Output	+15V, 100mA Max
24	Power Supply Common	Signal Ground
25	Shield Return	Shield Return

Tables & Diagrams

DIMENSIONS: in.[mm]

FRONT VIEW

TOP VIEW

BACK VIEW

HIGH VOLTAGE CONNECTOR PINOUT

Frequently Asked Questions

Application Notes AN-12 – The Benefit of Using a Current Source to Power X-Ray Tube Filament Circuits
Application Notes AN-14 – The Limits of Front Panel Digital Meters
Application Notes AN-15 – 3.5 And 4.5 Digit Meter Displays Explained
Application Notes AN-23 – SL HV Off and HV on Circuitry Explained
Application Notes AN-01 – Fundamentals of X-Ray Generator – X-Ray Tube Optimization
