SERIE PMX

  • Diseño personalizado específico para aplicaciones de mamografía
  • Formato compacto que ahorra espacio
  • Tiempos de elevación y caída rápidos que ayudan a minimizar la exposición innecesaria del paciente a la radiación
  • Arrancador de doble velocidad, capacidad de impulso/freno
  • Interfaces RS-232 y Ethernet opcionales

*Nota: Todas las especificaciones están sujetas a cambios sin previo aviso. Consulte la versión en PDF en inglés de esta hoja de datos para obtener la revisión más actualizada.

 Two Year Extended Warranty Logo UL logo RoHs Compliant logo

GENERADOR DE RAYOS X DE 50 KV

El PMX de Spellman es un generador de rayos X de alto desempeño diseñado específicamente para aplicaciones de mamografía incluyendo la mamografía digital de campo completo (FFDM) y la tomosíntesis mamaria digital (DBT). Está equipado con modo de exposición de 2 y 3 puntos así como con un AEC inteligente con preexposición.

El PMX es un generador de rayos X de alta frecuencia de 5 kW integrado con una fuente de alimentación de filamento doble y un arrancador de tubo de rayos X de doble velocidad. Gracias a la tecnología de conversión de potencia superior y al diseño del inversor de la serie PMX, puede proporcionar alto voltaje para el tubo de rayos X de forma precisa con tiempos rápidos de elevación y caída.

La fina integración del sistema de la PMX se logra a través del uso de la interfaz RS-232 y como opción, la interfaz digital Ethernet, parámetros del tubo de rayos X precargados, bloques internos de fácil acceso y conexiones de E/S además de un diagnóstico de generador interno. Opcionalmente, también se ofrece un software con una GUI de servicio para ayudar con la integración inicial del sistema.

Especificaciones

(Ref. 128113-001 REV. C)

Input Voltage:

200-240Vac (±10%), single phase, 50Hz/60Hz

Input Current:

Minimum 35A service recommended for 5kW operation

External EMC Filter (Schaffner FN2070-36-08-36A) required to meet CE/EMC specifications – Not provided

Mains Contactor – Not provided

Customer is responsible for mains safety disconnection.

Output (Tube) Voltage

Output Voltage Range:

20kV to 49kV

Polarity:

Positive, grounded cathode X-Ray tube

Accuracy:

2% (measured per IEC60601-2-45)

Reproductibility:

<0.5%

Rise Time:

<1ms to within 98% of the programmed voltage

Fall Time:

<10ms with a max HV cable length of 8 feet (2.4 meters)

Ripple:

4% p-p

Output (Tube) Current/Power:

Output Current Range:

10mA to 200mA

Output Power:

5kW @ 0.1 second loading time,

300 Watts maximum average power

Accuracy:

 < ±10% on exposure less than 10ms (measured per IEC60601-2-45)

Rise Time:

 <1ms to within 95% of the programmed mA value

Fall Time:

 <10ms with a maximum HV cable length of 8 feet (2.4 meters)

Exposure Time (Loading Time):

Maximum Single Exposure Time:

10 seconds

Shortest Single Exposure Time:

5ms

Loading time accuracy:

±3% +1ms (measured per IEC60601-2-45)

Maximum mAs:

600mAs

Exposure Timer:

5mS-10 seconds

Accuracy:

< ±10% (measured per IEC60601-2-45)

Reproductibility:

<0.5%

Filament Configuration:

DC filament drive: self corrected filament preheat settings with closed loop emission control and smart learning algorithm

Filament Output:

0-6 amps at a compliance of 5.5 volts, maximum.

Dual Speed Starter:

High speed (180Hz) and low speed (60Hz) can be configured via the serial interface.

Boost and Brake capability provided.

High Voltage Connector:

60kV, Claymount CA-3 type or equivalent

Communication Interface:

RS-232 standard, optional Ethernet

Grounding Point:

M5 ground stud provided on chassis

Environmental:

Temperature Range:

Operating: 10°C to 40°C

Storage: -40°C to 85°C

Humidity:

20% to 85% RH, non-condensing.

Cooling:

Internal fan

Dimensions:

9.47. H X 7.19. W X 13.72. D (240.5mm x 182.6mm x 348.5mm)

Weight:

<23 pounds (10.5kg)

Regulatory Approvals:

Designed to meet EMC:IEC 60601-1-2. UL/CUL recognized file E242584. RoHS compliant.

 Application Features:

  • 2 point/3 point exposure modes
  • AEC/Smart AEC exposure modes
  • Dual Speed Starter
  • X-Ray tube anode heat calculator
  • Preloaded X-Ray tube parameters and expandable X-Ray tube library

TB2 ROTOR INTERFACE

Pin Signal Parameters
TB2-1 Phase To tube auxiliary winding
TB2-2 Run To tube principle winding
TB2-3 Com To tube common winding
TB2-4 Ground To tube housing ground

 PMX STANDARD SYSTEM INTERFACE— JB1 25 PIN MALE D CONNECTOR

Pin Signal Parameters
1 GND Signal Ground
2 +5Vdc Out +5Vdc, 100mA max.
3 RS-232 Tx Out RS-232 Transmit
4 RS-232 Rx In RS-232 Receive
5 PREP User signal (Contact Closure) to alert the generatorthat exposure sequence will begin. Once this signalis active, exposure parameters are locked in andcannot be changed. The generator enables thestarter to to boost the rotor. Contact connection to pin 24. Closed = PREP, the filament is placed inpreheat mode
6 READY Generator signal to user to indicate the rotor runs tospeed and the generator is ready for X-Ray exposureOpen Collector. Low/Active = Ready
7 ROTOR SHUTDOWN User signal to brake the rotor drive
8 EXPOSURE User signal (Contact Closure) to generator to generate X-Rays. Filament is boosted, and highvoltage is generated after the boost time. Contactconnection to pin 24. Closed = Exposure
9 X-Ray ON 75% Status Transistor output to indicate X-Ray ON statussynchronized with 75% of kVP setting point.
10 X-Ray ON Status Transistor output to indicate X-Ray ON statussynchronized with kV start up.
11 N/C N/C
12 X-Ray SHUTDOWN/AEC User signal to generator to rapidly turn HV OFFand ON during serial exposure sequence
13 RS-232 ISO Ground Isolated ground from RS-232 transceiver IC
14 HVG FAULT Status Generator signal indicating generator fault. Opencollector transistor output. Low/Active = Fault
15 Status Bit 1 3 bit status lines for up to 6 status messages. separate matrix descibing functionality. Open Collector. Low/Active = Message
16 Status Bit 2
17 Status Bit 3
18 N/C N/C
19 N/C N/C
20 kV Monitor Signal from generator. 0-10V = 0-50kV. Zout = 1kΩ
21 Emission Monitor Signal from generator. 0-10V = 0-200mA. Zout = 1kΩ
22 Filament Current Monitor Signal from generator. 0-10V = 0-6A. Zout = 1kΩ
23 Program/Monitor Return Ground for reference of program and monitor signals
24 +24Vdc Out For connection to PREP and EXPOSURE control relay coils
25 SHIELD/GND For connection of interface cable shield to generatorchassis ground

TB3 TUBE AND INTERLOCK INTERFACE

Pin Signal Parameters
TB3-1 SMALL FIL Connection to tube small filament
TB3-2 COMMON Connection to tube filament common
TB3-3 LARGE FIL Connection to large filament
TB3-4 GROUND Generator chassis for cable shield connection
TB3-5 Interlock 2+ Used if tube has separate thermostat switch. Open = OVER TEMP. (short terminals if not used)
TB3-6 Interlock 2-
TB3-7 Interlock 3+ Used if tube has cooling circulator flow switch. Open = NO FLOW. (short terminals if not used)
TB3-8 Interlock 3-
TB3-9 Safety Interlock+ User signal (Contact Closure) for safety interlocks such as door interlocks. Open turns HV OFF, or inhibits HV from being generated.Closed = OK 24Vdc @ <1A typical
TB3-10 Safety Interlock-
TB3-11 Contactor Coil+ Option for contactor coil control
TB3-12 Contactor Coil-
TB3-13 Spare N/C
TB3-14 Spare N/C
TB3-15 Tube Current+ Tube current flows out from this pin
TB3-16 Tube Current- Tube current flows into this pin

Tablas y Diagramas

DIMENSIONS: in.[mm]

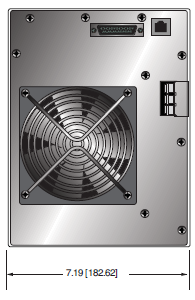

FRONT VIEW

PMX Mammography X-Ray Generator (Image 1)

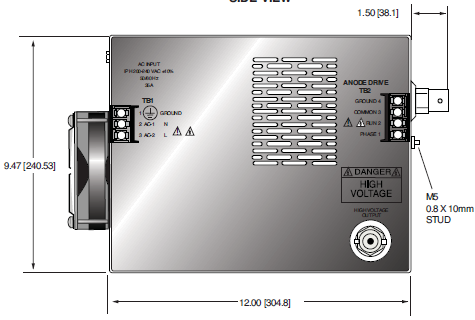

SIDE VIEW

PMX Mammography X-Ray Generator (Image 2)

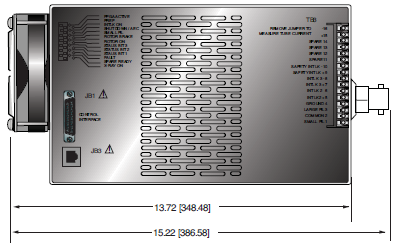

TOP VIEW

PMX Mammography X-Ray Generator (Image 3)

BOTTOM VIEW

PMX Mammography X-Ray Generator (Image 4)
