XRF Series

160kV Output Voltage
Rack-Mountable
Floating Filament (AC or DC)
Internal Grid Power Supply (80W Model)
Power Factor Correction
Closed-loop Emission Control
OEM Customization/X Number Required

*Note: All specifications are subject to change without notice. Please consult the English PDF version of this datasheet for the most up-to-date revision.

Two Year Extended Warranty & RoHS Compliant Logos CE Marking

Data Sheet

Relevant FAQs

80-640W Industrial X-Ray Generators

Spellman’s XRF X-Ray generator platform allows for a wide range of input voltages and supply either 80W, 320W or 640W of output power at up to 160kVdc. These lightweight rack-mountable X-Ray generators house a miniaturized high voltage system in a solid encapsulated, oil-free design. The XRF Series X-Ray generator is designed with a power factor corrected input circuit which reduces harmonic emissions and noise normally associated with other high frequency switching power supplies. The XRF Series X-Ray generator incorporates an internal floating filament and a closed-loop emission control circuit for precise regulation of emission current. Remote monitoring and control of voltage, current and filament current is also provided.

TYPICAL APPLICATIONS

X-Ray Inspection, Non-Destructive Testing

TYPICAL OPTIONS

DF Dual Filament
GS Grid Supply
SL Slides
AT Arc Trip
IO Instant On
SS(X) Non Standard Slow Start

Specifications

^{(Ref. 128013-001 REV. T)}

^{SPECIFICATIONS}

Input Voltage:

80W: 90-125Vac at 48-62Hz @ 1.9A

180-264Vac at 48-62Hz @ 0.9A

320W: 180-264Vac at 48-62Hz @ 3.5A

640W: 180-264Vac at 48-62Hz @ 7A

Power Factor:

0.9 or better.

High Voltage Supply:

Output Voltage:

0-160kV, negative polarity.

Output Current:

80W: 0.5mA max. 320W: 2.0mA at 160kV 640W: 4.0mA.

Output Voltage Stability:

Within 0.1% of set value after warm-up period at full load.

Output Voltage Ripple:

80W & 320W: <0.1%, or 160V p-p for high freq. and line freq. at full load.

640W: 0.03% rms <1kHz, 0.75% rms above 1kHz.

Beam Current Stability

80W: Within 0.1% of set value after 1/2 hour warm-up at constant output setting of 30-160kV and line voltage of 90-125 & 180-264Vac.

320W & 640W: Same as 80W except line voltage of 180-264Vac.

Filament Supply: Constant current DC filament supply with closed-loop current feedback.

Filament Voltage: 7V rms (high frequency) max.

Filament Current: 5A max., adjustable 0-5.0A by external Filament Limit Programming input.

Floating Grid Power Supply:

Grid Supply: The grid supply controls tube beam current in a closed-loop regulation design.

Grid Voltage: 0 to 1200Vdc.

Grid Voltage Ripple: Less than 1.0V rms at any frequency.

Grid Supply Response: Less than 0.5mA in less than 10ms.

Control and Monitoring:

Analog Control Inputs: Three inputs have internal load resistance greater than 330kohms.

Voltage Programming:

80W, 320W & 640W:

0 to +10Vdc, where 10.0Vdc = 160kV output.

Beam Tube Current Control:

80W: 0 to +10Vdc, where 10.0Vdc = 0.5mA tube current.

320W: 0 to +10Vdc, where 10.0Vdc = 2.0mA tube current.

640W: 0 to +10Vdc, where 10.0Vdc = 4.0mA tube current.

Filament Current Control:

0 to +10Vdc, where 5.0Vdc = 5.0A filament current.

Analog Monitor Outputs: (See tables for details)

Digital Control Inputs: (See tables for details)

Digital Outputs: (See tables for details)

Connections:

Output Connector:

R24 (see owners manual for details)

Input Power Connector:

5-pin male MS-type, Amphenol P/N 97-3102A-18-20P

Control Connector:

25-pin “D” connector, male, chassis-mounted.

Environmental:

0 to +50°C at 10-95% RH, non-condensing.
Forced convection cooling.

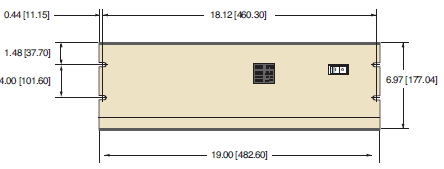

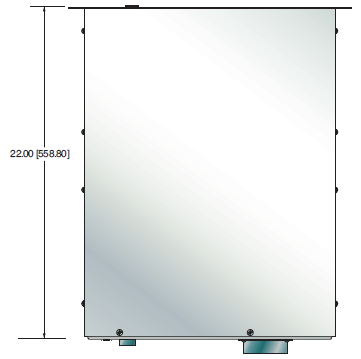

Dimensions:

7”H x 19”W x 22”D (17.8cm x 48.3cm x 55.9cm).

Regulatory Approvals:

Compliant to EEC EMC Directive. Compliant to EEC Low Voltage Directive. RoHS compliant

Options:

DF - Dual Filament AT - Arc Trip

GS - Grid Supply IO - Instant ON

SL - Slides SS(X) - Non Standard Slow Start

Electronic Component (Power Source)

XRF series is intended for installation as a component of a system. It is designed to meet CE standards, with conditions of acceptance often being: customer provided enclosure mounting, EMC filtering, and appropriate protection, and isolation devices. The XRF series is not intended to be operated by end users as a stand-alone device. The XRF series power supply can only be fully assessed when installed within a system, and as a component part within that system.

160kV XRF SELECTION TABLE

Output Voltage kV	Output Current mA	Output Power W	Model (X NUMBER REQUIRED)
160	0.5	80	X--------
160	2.0	320	X--------
160	4.0	640	X--------

J2 AC INPUT CONNECTOR WIRING

5 Pin MS Type	7 Pin UTG Type	Connection
A	1	Auxiliary (Logic) Line
B	2	Auxiliary (Logic) Neutral
C	3	Ground
D	4	Main (Inverter) Line
E	5	Main (Inverter) Neutral

JB1 160kV XRF 80W, 320W, 640W 25 PIN

Pin	Signal	Signal Parameters
1	Filament Limit	0-5V = 0-5A Filament Limit
2	High Voltage on Control	+12VDC IN = HV ON
3	N/C
4	N/C
5	High Voltage On Status	Low = HV ON
6	A-Ground	Ground
7	kV Monitor	0-10V = 0-160kV
8	Interlock Control	+12VDC IN = Interlock Closed
9	N/C
10	mA Demand	0-10V = 0-100% Rated Output
11	N/C
12	N/C
13	D-Ground	Ground
14	Fil. Monitor	0-5V = 0-5A
15	N/C
16	N/C
17	N/C
18	N/C
19	mA Monitor	0-10V = 0-100% Rated Output
20	N/C
21	+12VDC Out
22	kV Demand	0-10V = 0-160kV
23	Grid Inhibit/Fil. Select	Low = Grid Inhibit
24	N/C
25	Chassis Gnd (I/O Shield)	Chassis Gnd.

160kV XRF 80W, 320W, 640W TERMINAL BLOCK 10 PIN

Pin	Signal	Signal Parameters
1	Interlock	Jumper to TB1-2 to close interlock
2	Interlock Return
3	kV Monitor	0-10V=0-160kV
4	mA Monitor	0-10V = 0-100% Rated Output
5	Filament Monitor	0-5V=0-5A
6	N/C
7	HV ON Indicator	+15V = HV ON
8	Voltage Mode Indicator	Low = Voltage Mode.
9	Current Mode Indicator	Low = Current Mode.
10	GND	Ground
