STR Series
- Single 6U (10.5”) Chassis
- Models from 1kV to 150kV
- Remote Analog and Remote Ethernet Interface
- Arc and Short Circuit Protected
- User Configurable Settings Via Ethernet Interface
- OEM Customization Available
*Note: All specifications are subject to change without notice. Please consult the English PDF version of this datasheet for the most up-to-date revision.
6kW High Voltage Power Supplies
Spellman’s STR Series of 6kW high voltage power supplies are available in positive or negative polarities in 19 different models with outputs ranging from 1kV to 150kV. A full featured front panel allows easy local control, while an extensive analog interface provides comprehensive remote capability. The standard Ethernet and RS-232 digital interfaces simplify integrating the STR into your system design.
The STR’s robust IGBT inverter is inherently fault tolerant and is ideal for demanding applications like semiconductor processing and vacuum deposition. Many operational features can be configured by the user to suit their particular requirements.
Typical applications:
- Ion Beam Implantation
- Semiconductor Processing
- Electron Beam Welding
- Capacitor Charging
- High Power RF Transmitters
- Electrostatic Precipitators
- X Ray Systems
Digital Interface
The STR features a standard RS-232 and Ethernet digital interface. Utilizing these standard digital interfaces can dramatically simplify power supply interfacing requirements saving the user both time and money, while enhancing functionality and overall capability. Spellman provides a GUI with the STR that allows the customer to both customize operational features of the STR while also providing basic power supply operational features. Details of the STR’s digital interface capability are described in detail in the STR manual, downloadable via the link on the first page of this data sheet.
Arc Intervention
Spellman’s STR power supplies have an arc intervention feature that senses arc currents via a fast acting current sense transformer. The purpose of the arc intervention circuitry is to prevent power supply damage from continuous, long term arcing. The factory default configuration will trip off the unit with an Arc Fault if 4 arcs occur in a 10 second time period. Customers can change basic arc intervention parameters (Arc Count, Arc Quench, Reramp Time, and Window Time) within preset limits via the digital interface; customized units can be provided for unique arc prone environments, contact Spellman for details.
Specifications
(Ref. 128102-001 REV. L)
SPECIFICATIONS
Input Voltage:
Standard: 180-264Vac, 50/60Hz, three phase, 90% efficiency, 0.85 power factor
Optional: 360-528Vac 50/60Hz, three phase (400VAC) 180-264Vac 50/60Hz, single phase (1PH)
Input Current:
Standard: 180-264Vac, three phase 25 amps, maximum
Optional: 360-528Vac, three phase 12.5 amps, maximum 180-264Vac, single phase 57 amps, maximum
Output Voltage:
19 models from 1kV to 150kV. Each model is available with positive or negative outputs. 1kV to 10kV units are internally reversible.
Local Output Controls:
Voltage and current are continuously adjustable over entire range via ten-turn potentiometers with lockable counting dials.
Voltage Regulation:
Load: 0.05% of full voltage +500mV for full load change.
Line: 0.05%of full voltage +500mV over specified input range.
Current Regulation:
Load: 0.05% of full current ±100µA for any voltage change.
Line: 0.05% of full current over specified input range.
Ripple:
0.1% p-p +1Vrms
Stability:
0.02%hr. after 1 hour warm-up.
Temperature Coefficient:
100ppm/°C. Higher stability (50ppm/°C) available on special order via the HS option
Environmental:
Temperature Range:
Operating: 0°C to 40°C
Storage: -40°C to 85°C
Humidity:
10% to 90% RH, non-condensing.
Cooling:
Forced air; inlet through side panels, outlet at rear panel
Metering:
Digital voltage and current meters, accurate to within 1%
System Status Display:
“Dead Front” type indicators provide status of up to 12 system operations including voltage and current regulation, fault conditions and circuit control.
Analog Interface Connector:
50 pin female D connector
High Voltage Output Cable:
A detachable 10’ (3.05m) long shielded HV cable is provided
Dimensions:
1kV to 120kV:
10.5. (6U)H X 19. W X 21. D (266mm x 482mm x 533mm)
150kV:
10.5. (6U)H X 19. W X 23. D (266mm x 482mm x 584mm)
Weight:
1kV to 50kV: <100 pounds (45.36kg)
60kV to 120kV: <140 pounds (63.50kg)
150kV: <150 pounds (68kg)
Individual kV models may vary
Regulatory Approvals:
Designed to meet EEC EMC Directive. Compliant to EEC Low Voltage Directive. RoHS Compliant.
BFP - Blank Front Panel
HS - High Stability
LL(X) - High Voltage Cable Length
400VAC - 360-528Vac, Three Phase Input
1PH - 180-264Vac, Single Phase Input
Software Configurable Features:
Adjustable Overload Trip Arc Trip Count Arc Quench Time Arc Re-Ramp Time Constant Power Control Adjustable Power Trip Slow Start Ramp Times
Digital Interface
The STR features a standard RS-232 and Ethernet digital interface. Utilizing these standard digital interfaces can dramatically simplify power supply interfacing requirements saving the user both time and money, while enhancing functionality and overall capability. Spellman provides a GUI with the STR that allows the customer to both customize operational features of the STR while also providing basic power supply operational features.

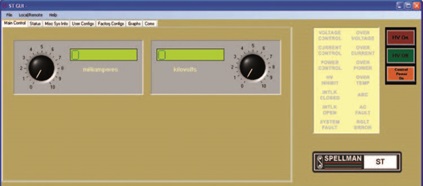

Main control screen
Status screen

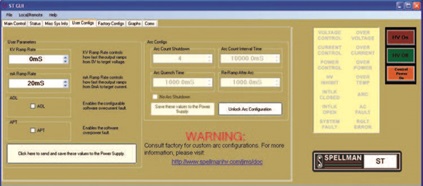

User configuration screen
Arc Intervention
Spellman’s STR power supplies have an arc intervention feature that senses arc currents via a fast acting current sense transformer. The purpose of the arc intervention circuitry is to prevent power supply damage from continuous, long term arcing. The factory default configuration will trip off the unit with an Arc Fault if 4 arcs occur in a 10 second time period. Customers can change basic arc intervention parameters (Arc Count, Arc Quench, Reramp Time, and Window Time) within preset limits via the digital interface; customized units can be provided for unique arc prone environments, contact Spellman for details.

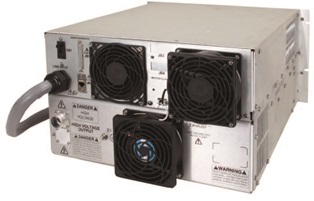

STR rear panel view
Electronic Component (Power Source)
STR series is intended for installation as a component of a system. It is designed to meet CE standards, with conditions of acceptance often being: customer provided enclosure mounting, EMC filtering, and appropriate protection, and isolation devices. The STR series is not intended to be operated by end users as a stand-alone device. The STR series power supply can only be fully assessed when installed within a system, and as a component part within that system.
STR SELECTION TABLE
Maximum Rating | Model Number | |
---|---|---|
kV | mA | |
1 | 6,000 | STR1*6 |
2 | 3,000 | STR2*6 |
3 | 2,000 |
STR3*6 |
4 | 1,500 | STR4*6 |
6 | 1,000 | STR6*6 |
8 |
750 | STR8*6 |
10 | 600 | STR10*6 |
12 | 500 | STR12*6 |
15 | 400 | STR15*6 |
20 | 300 | STR20*6 |
30 | 200 | STR30*6 |
40 | 150 | STR40*6 |
50 | 120 | STR50*6 |
60 | 100 | STR60*6 |
70 | 86 | STR70*6 |
80 | 75 | STR80*6 |
100 | 60 | STR100*6 |
120 | 50 | STR120*6 |
150 |
40 | STR150*6 |
*Substitute “P” for positive polarity and “N” for negative polarity. Polarity must be specified at time of order.
1-10kV units are inherently reversible by design requiring an internal wiring change to swap polarities. Intermediate voltage units are available by special order.
JB1 STR ANALOG INTERFACE 50 PIN FEMALE D CONNECTOR
Pin | Signal | Parameters |
---|---|---|
1 | Power Supply Common | Power Supply Ground |
2 | Reset/HV Inhibit | Normally open, Low = Reset/Inhibit |
3 | External Interlock | +24Vdc @ open, <25mA @ closed |
4 | External Interlock Return | Return for External Interlock |
5 | mA Test Point | 0-10Vdc = 0-100% rated output, Zout= 1KΩ, 1% |
6 | kV Test Point | 0-10Vdc = 0-100% rated output, Zout= 1KΩ, 1% |
7 | +10Vdc Reference Output | +10Vdc @ 1mA |
8 | mA Program Input | 0-10Vdc = 0-100% rated output, Zin>10MΩ |
9 | Local mA Program Output | 0-10Vdc = 0-100% rated output, front panel pot |
10 | kV Program Input | 0-10Vdc = 0-100% rated output, Zin>10MΩ |
11 | Local kV Program Output | 0-10Vdc = 0-100% rated output, front panel pot |
12 | Remote Power On Output | +24Vdc @ open, 2A peak, 1Adc @ closed |
13 | Remote Power On Return | Return for Remote Power On |
14 | Remote HV Off | +24Vdc @ open, 2A peak, 1Adc @ closed, connect to pin15 for front panel operation |
15 | Remote HV Off/On Common | HV On/Off Common |
16 | Remote HV On | +24Vdc @ open, 2A peak, 1Adc @ closed, momentarily connect to pin 15 enable high voltage |
17 | HV Off Indicator | +24Vdc @ 25mA = HV Off |
16 | HV On Indicator | +24Vdc @ 25mA = HV On |
19 | Power Supply Common | Supply Ground |
20 | +24Vdc Output | +24Vdc @ 100mA, maximum |
21 | Voltage Mode Status | Open Collector, Low = Active |
22 | Current Mode Status | Open Collector, Low = Active |
23 | Power Mode Status | Open Collector, Low = Active |
24 | Interlock Closed Status | Open Collector, Low = Active |
25 | Power Test Point | 0-10Vdc = 0-100% rated output, Zout= 5KΩ, 1% |
26 | Spare | |
27 | Spare | |
28 | Remote Overvoltage Adjust | 0-10Vdc = 0-100% rated output |
29 | Over Power Fault | Open Collector, Low = Active |
30 | Over Voltage Fault | Open Collector, Low = Active |
31 | Over Current Fault | Open Collector, Low = Active |
32 | System Fault | Open Collector, Low = Active |
33 | RGLT Error Fault | Open Collector, Low = Active |
34 | Arc | Open Collector, Low = Active |
35 | Over Temp Fault | Open Collector, Low = Active |
36 | AC Fault | Open Collector, Low = Active |
37 | Spare | |
38 | Spare | |
39 | Spare | |
40 | Spare | |
41 | Spare | |
42 | Remote Power Program Input | 0-10Vdc = 0-100% rated output, Zin>10MΩ |
43 | Local Power Program Output | 0-10Vdc = 0-100% rated output, internal pot |
44 | +5Vdc Output | +5Vdc @ 100mA, maximum |
45 | +15Vdc Output | +15Vdc @ 100mA, maximum |
46 | -15Vdc Output | -15Vdc @ 10mA, maximum |
47 | RS232 Tx | |
48 | RS232 Rx | |
49 | RS232 GND | |
50 | Power Supply Common | Power Supply Ground |
Tables & Diagrams
DIMENSIONS: in.[mm]

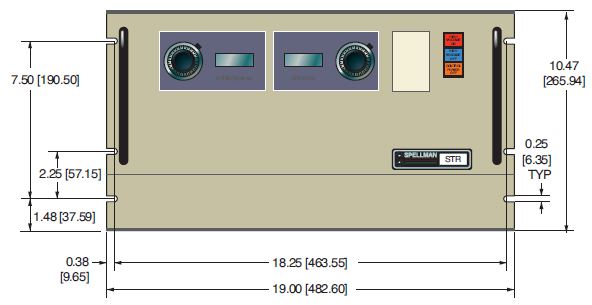

FRONT VIEW

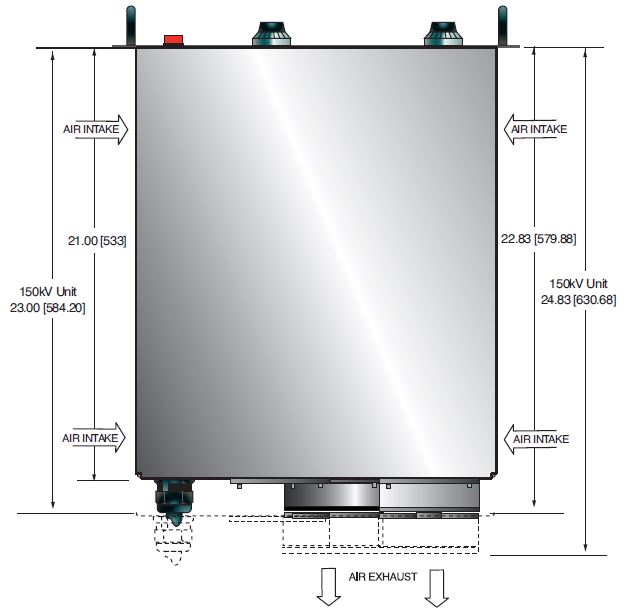

TOP VIEW

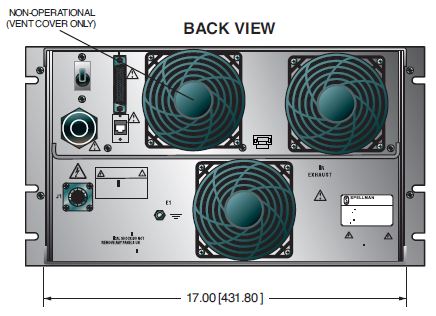

BACK VIEW
