SLM СЕРИЯ
- Компактность и легкость конструкции
- Модели от 1 кВ до 160 кВ, 300 Вт, 600 Вт и 1200 Вт
- Универсальный вход, коррекция коэффициента мощности
- Недорогая модульная конструкция
- Стандартные цифровые интерфейсы: USB, Ethernet и RS-232
- Соответствует требованиям EC и UL
* Примечание: Все спецификации могут быть изменены без предварительного уведомления. Пожалуйста, ознакомьтесь с английской версией PDF этой спецификации для получения последней актуальной информации об оборудовании.
300W-1200W Высоковольтные источники питания
Выпускаемые компанией Spellman высоковольтные модули серии SLM предназначены для применения в системах заказчика в диапазоне до 160 кВ и 1200 Вт. Универсальный вход, малый размер корпуса и возможность выбора из трех стандартных цифровых интерфейсов устройств серии SLM упрощают их интеграцию в любые системы. Модели поставляются либо с положительной, либо с отрицательной полярностью. Устройства серии SLM полностью защищены от дуги и короткого замыкания. Конструкция обеспечивает превосходные характеристики наряду с высочайшим уровнем стабильности.
Типовые применения:
- Зарядка конденсаторов
- Испытание высоким напряжением
- Испытание ЭЛТ
- Электростатика
- Электронно-лучевые системы
- Лазеры непрерывного излучения
Технические характеристики
(Ref. 128035-001 REV. AB)
Input Voltage:
Power factor corrected input ≥0.98
100-240Vac, ±10% (90-264Vac):
47-63Hz @ 4.0A for 300 watt units
200-240Vac, ±10% (180-264Vac):
47-63Hz @ 4.0A for 600 watt units
47-63Hz @ 8.0A for 1200 watt units
Output Voltage:
12 models—1kV to 160kV
Output Polarity:
Negative or positive, specify at time of order
Local Indicators:
Arc, HV On, Temp Error, OVP, I Mode
Power On, OC, Reg Error
Power:
3 power ranges available—300, 600 and 1200 watts. Other power levels available on special order.
Voltage Regulation:
≤ 0.01% of rated output voltage over specified
input voltage range
≤ 0.01% of rated output voltage for a full load change
Current Regulation:
≤ 0.01% of rated output current over specified input voltage range
≤ 0.01% of rated output current for a ±100µA
for a full voltage change
Ripple:
≤ 0.2% rms of maximum rated voltage,
measured with a 10 foot long HV cable
Stability:
≤ 50ppm/hr after a 2 hour warm up
Temperature Coefficient:
≤ 100ppm per degree C
Environmental:
Temperature Range:
Operating: 0°C to 40°C
Storage: -40°C to 85°C
Humidity:
20% to 85% RH, non-condensing.
Control Interface
Local Interface:
Potentiometers are provided to adjust voltage and current.
Remote Interface:
USB, Ethernet and RS-232 are standard, implemented with 12 bits of resolution. All digital monitors have an accuracy specification of 2%.
Control Software:
A Windows graphical user interface
example is provided.
embedded applet for control.
HV Control Enable/Interlock:
A dry contact, hardware based interlock is provided for remote mode. In local mode this I/O is the enable.
Monitor Signals:
Voltage and current monitor signals are scaled 0-10Vdc equals 0-100% of full scale, accuracy is 1%.
Cooling:
Forced air
Dimensions:
300/600 watts:
4.75˝ H X 6˝ W X 12˝ D (120.65mm x 152.4mm x 304.8mm)
1200 watts:
4.75˝ H X 12˝ W X 12˝ D (120.65mm x 304.8mm x 304.8mm)
160kV:
10.5˝ H X 19˝ W X 21.5˝ D (266.7mm x 482.6mm x 546.1mm)
Weight:
300/600 watts: 14 pounds (6.35kg)
1200 watts: 26 pounds (11.8kg)
160kV: 142 pounds (64.4kg)
Input Line Connector:
IEC320 cord set with integrated EMI filter
Output Cable:
A detachable 10’ (3.3m) long shielded HV cable is provided.
160kV units: R24 connector. Mating HV cable not provided.
Regulatory Approvals:
Compliant to 204/108/EC, the EMC Directive and 2006/95/EC, the Low Voltage Directive. UL/CUL recognized, File 227588. RoHS compliant. SLM160*1200 is not UL recognized.
FIRMWARE CONFIGURATIONS:
STANDARD BASED FEATURES
AOL - Adjustable Overload Trip
AT - Arc Trip
NAD - No Arc Detect
NSS - No Slow Start
PSS - Programmable Slow Start
RFR - Remote Fault Reset
RMI - Remote Mode Indicators
ROV - Remote Overvoltage Adjust
SLM SELECTION TABLE- 300W
| 300 Watt | ||
|---|---|---|
| kV | mA | Model |
| 1 | 300 | SLM1*300 |
| 3 | 100 | SLM3*300 |
| 5 | 60 | SLM5*300 |
| 10 | 30 | SLM10*300 |
| 15 | 20 | SLM15*300 |
| 20 | 15 | SLM20*300 |
| 30 | 10 | SLM30*300 |
| 40 | 7.5 | SLM40*300 |
| 50 | 6 | SLM50*300 |
| 60 | 5 | SLM60*300 |
| 70 | 4.28 | SLM70*300 |
*Specify “P” for positive polarity or “N” for negative polarity
SLM SELECTION TABLE- 600W
| 600 Watt | ||
|---|---|---|
| kV | mA | Model |
| 1 | 600 | SLM1*600 |
| 3 | 200 | SLM3*600 |
| 5 | 120 | SLM5*600 |
| 10 | 60 | SLM10*600 |
| 15 | 40 | SLM15*600 |
| 20 | 30 | SLM20*600 |
| 30 | 20 | SLM30*600 |
| 40 | 15 | SLM40*600 |
| 50 | 12 | SLM50*600 |
| 60 | 10 | SLM60*600 |
| 70 | 8.56 | SLM70*600 |
*Specify “P” for positive polarity or “N” for negative polarity
SLM SELECTION TABLE- 1200W
| 1200 Watt | ||
|---|---|---|
| kV | mA | Model |
| 1 | 1200 | SLM1*1200 |
| 3 | 400 | SLM3*1200 |
| 5 | 240 | SLM5*1200 |
| 10 | 120 | SLM10*1200 |
| 15 | 80 | SLM15*1200 |
| 20 | 60 | SLM20*1200 |
| 30 | 40 | SLM30*1200 |
| 40 | 30 | SLM40*1200 |
| 50 | 24 | SLM50*1200 |
| 60 | 20 | SLM60*1200 |
| 70 | 17.14 | SLM70*1200 |
| 160 | 7.5 | SLM160*1200 |
*Specify “P” for positive polarity or “N” for negative polarity
SLM ANALOG INTERFACE—J2 15 PIN MALE D CONNECTOR
| Pin | Signal | Signal Parameters |
|---|---|---|
| 1 | Power Supply Fault | Open Collector, 35V @ 10mA Maximum |
| 2 | Current Program In | 0 to 10V=0 to 100% Rated Output, Zin=10MΩ |
| 3 | Voltage Program In | 0 to 10V=0 to 100% Rated Output, Zin=10MΩ |
| 4 | NC | No Connection |
| 5 | Local Voltage Prog. | Multi-turn front panel potentiometer |
| 6 | NC | No Connection |
| 7 | Local Current Prog. | Multi-turn front panel potentiometer |
| 8 | Voltage Monitor | 0 to 10V=0 to 100% Rated Output, Zout =4.99k, 1% |
| 9 | Signal Ground | Ground |
| 10 | Current Monitor | 0 to 10V=0 to 100% Rated Output, Zout =4.99k, 1% |
| 11 | HV Enable Input | Connect to Pin 12 to HV Enable Supply |
| 12 | HV Enable Output | +15V @ Open, ≤15mA @ Closed |
| 13 | NC | No Connection |
| 14 | HV On Output Signal | Open Collector, 35V @10mA Maximum |
| 15 | Spare | No Connection |
RS-232 DIGITAL INTERFACE— J3 9 PIN FEMALE D CONNECTOR
| Pin | Signal | Signal Parameters |
|---|---|---|
| 1 | NC | No Connection |
| 2 | TX out | Transmit Data |
| 3 | RX in | Receive Data |
| 4 | NC | No Connection |
| 5 | SGND | Ground |
| 6 | NC | No Connection |
| 7 | NC | No Connection |
| 8 | NC | No Connection |
| 9 | NC | No Connection |
RS-232 DIGITAL INTERFACE— J4 4 PIN USB "B" CONNECTOR
| Pin | Signal | Signal Parameters |
|---|---|---|
| 1 | VBUS | +5 Vdc |
| 2 | D- | Data - |
| 3 | D+ | Data + |
| 4 | GND | Ground |
ETHERNET DIGITAL INTERFACE— J5 8 PIN RJ45 CONNECTOR
| Pin | Signal | Signal Parameters |
|---|---|---|
| 1 | TX+ | Transmit Data + |
| 2 | TX- | Transmit Data - |
| 3 | RX+ | Receive Data + |
| 4 | NC | No Connection |
| 5 | NC | No Connection |
| 6 | RX- | Receive Data - |
| 7 | NC | No Connection |
| 8 | NC | No Connection |
R24 HV CONNECTOR PINOUT J6 HIGH VOLTAGE OUTPUT (160kV)
| Pin | Output Connection |
|---|---|
| C (common) | High Voltage Output |
| S (small) | High Voltage Output |
| L (large) | High Voltage Output |
Таблицы и диаграммы

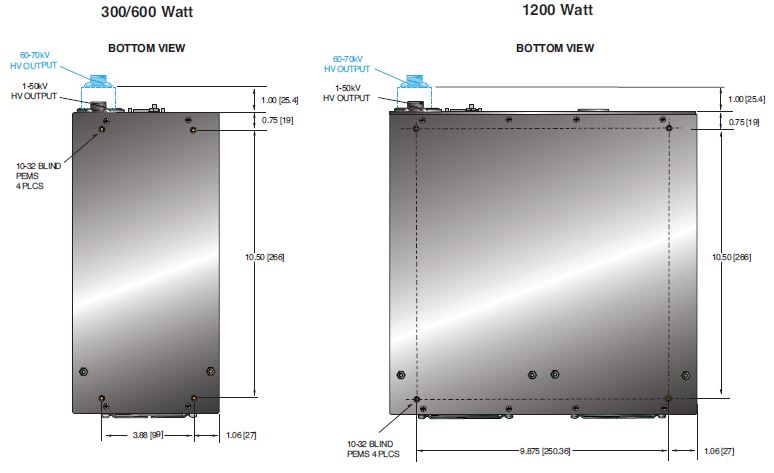

DIMENSIONS: in.[mm]
DIMENSIONS: in.[mm]
160kV
Top View
Front View
Side View
