XRB160PN480/CT Monoblock®工業用X線ジェネレーター

一体型HV電源、フィラメント電源、X線管、ビームポートおよび制御電子回路
小型軽量
あらゆる物理的方向に取付け可能
標準RS-232デジタルインターフェイス

*注: すべての仕様は予告なく変更される場合があります。最新版についてはこのデータシートの英語PDFをご覧ください。

160kV、480W X線源

スペルマンのX線源Monoblock® XRB160PN480/CTは、OEMアプリケーション向けに設計されており、内部のX線管に480ワットで最大160kVまでの電力を供給します。小型パッケージ、標準アナログ、RS-232デジタル・インターフェースなどの機能により、XRBをお客様のX線装置に容易に組み込むことが可能です。標準モデルは、ファンビームのビーム形状です。独自のエミッション制御回路はX線管電流の調整に優れており、際立った安定性を提供します。

典型的な用途:

X線スキャン: 食品検査
充填レベル確認
セキュリティ用途

Specifications

^{(Ref. 128083-001 REV. J)}

X-Ray Characteristics:

Tube Type: Glass tube, Tungsten target, Be filter

Focal Spot: 0.8mm x 0.8mm (IEC336)

Beam Filter: 1.75mm of glass, 1mm of Al, and 10mm of oil

Beam Geometry: Symmetrical fan 105° ±3° x 4° ±1°

Input Voltage:

Monoblock®: 100-240Vac ±10%, 50/60Hz, 6.5A max

Heat Dissipation Unit: 24Vdc, 3A

X-Ray Tube Voltage:

Nominal X-Ray tube voltage is adjustable between 20kV to 160kV

X-Ray Tube Current:

0.3mA to 6mA over specified tube voltage range

X-Ray Tube Power:

320W continuous, 480W peak

Voltage Regulation:

Line: ±0.1% for a ±10% input line change of nominal input line voltage

Load: ±0.1% for a 0.3mA to 6mA load change

Voltage Accuracy:

Voltage measured across the X-Ray tube is within ±1% of the programmed value

Voltage Risetime:

Ramp time shall be <1 second from 1% to 90% of rated output

Voltage Overshoot:

Within 5% of rated voltage

Voltage Ripple:

0.1% p p of rated voltage @ ≤1kHz

Current Regulation:

Line: ±0.5%

Load: ±0.5%

Current Accuracy:

Current measured through the X-Ray tube is within ±1% of the programmed value

Current Risetime:

<1 second from 1% to 90% of rated output

Arc Intervention:

4 arcs in 10 seconds = Shutdown

Filament Configuration:

Internal high frequency AC filament drive with closed loop filament emission control

Digital Interface:

RS-232

Control Software:

A demo GUI for engineering evaluations will be provided for the RS-232 digital interface upon request.

Interlock Signals:

A hardware interlock functions in digital programming modes.

Operating Temperature:

0°C to +40°C

Storage Temperature:

-40°C to +70°C

Humidity:

5% to 90% relative humidity, non-condensing

Cooling:

Heat exchanger w/fan and oil pump, powered from AC

Input Line Connector:

3 pin Phoenix Contact part no. 1829167

Digital Interface Connector:

9 pin D, female

Grounding Point:

8-32 ground stud provided on chassis

Dimensions:

24.00˝ x 16.00˝ x 6.50˝ (609.60mm x 406.40mm x 165.10mm)

Weight:

125lbs (49.5kg) ±10lbs (±4.5kg)

Orientation:

Can be mounted in any orientation.

X-Ray Leakage:

Not to be greater than 0.5mR/hr at 5cm outside the external surface

Special Features:

Stationary or rotating CT application up to 90rpm at a max. radius of 24.75˝ (629mm) Corporate

AC INPUT POWER 3 PIN PHOENIX CONTACT

Pin	Signal	Parameters
1	Line	Line
2	GND	GND
3	Neutral	Neutral

ANALOG INTERFACE — 10 PIN PHOENIX CONTACT

Pin	Signal	Parameters
1	X-Ray	+24Vdc = enable X-Ray
2	X-Ray Return	X-Ray Return
3	N/C	No Connection
4	kV Monitor Output	0 to 9Vdc = 0 to 100% Rated Voltage
5	SGND	Signal Ground
6	mA Monitor Output	0 to 9Vdc = 0 to 100% Rated Current
7	Fault	Open Collector, Open = No Fault
8	Relay N/C	HV On, 50V @ 1A maximum
9	Relay Common	HV On, 50V @ 1A maximum
10	Relay N/O	HV On, 50V @ 1A maximum

RS-232 DIGITAL INTERFACE — 9 PIN FEMALE D CONNECTOR

Pin	Signal	Parameters
1	N/C	No Connection
2	Transmit Data	Conforms to E/A RS-232-C
3	Receive Data	Conforms to E/A RS-232-C
4	N/C	No Connection
5	SGND	Signal Ground
6	N/C	No Connection
7	N/C	No Connection
8	N/C	No Connection
9	N/C	No Connection

Tables & Diagrams

DIMENSIONS: in.[mm]

FRONT VIEW

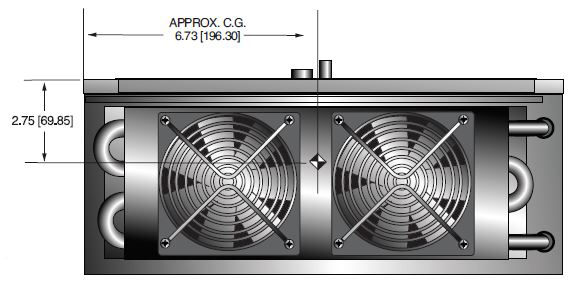

BACK

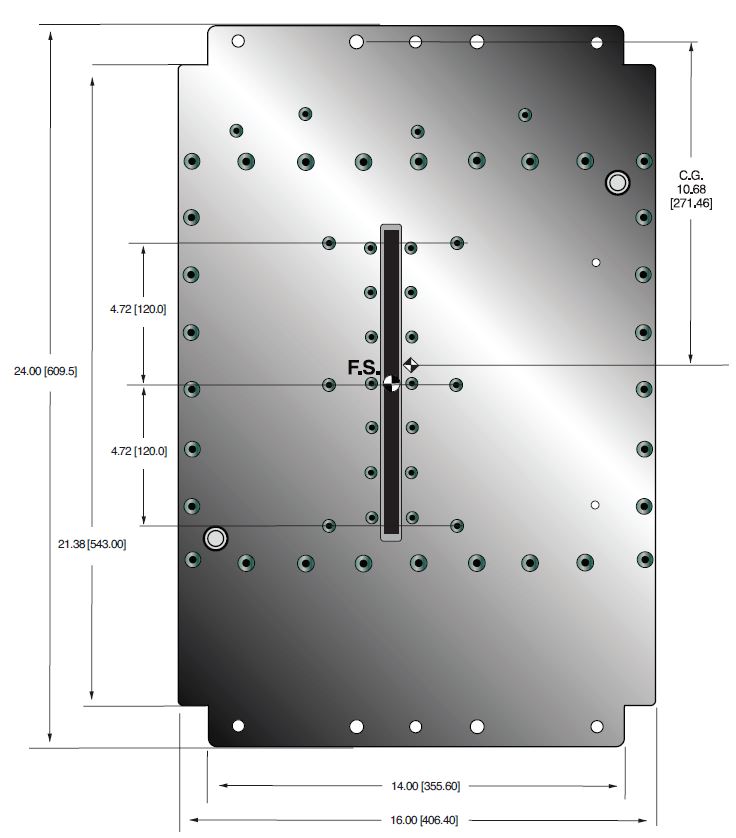

TOP VIEW

SIDE VIEW
