MX8Plus
- 25ms以内の±8kV極性反転
- EIおよびAPCIアプリケーション用に最適化
- 高精度アナログ電圧/ 電流制御とモニタ
- 高安定度
- 低リップル/ 低ノイズ
- 高電圧インヒビット制御
- UL認証、CEマーク、RoHS対応
*注: すべての仕様は予告なく変更される場合があります。最新版についてはこのデータシートの英語PDFをご覧ください。
高性能高電圧電源
スペルマンのMX8 Plusは、25ms「ホットスイッチ可能」極性反転機能を備えた、高性能な高速極性反転電源です。
また低リップル仕様のため、質量分析アプリケーション、特に、セキュリティ探知装置、ダイノード、サンプルのイオン化、またキャピラリ電気泳動および静電印刷アプリケーションに最適です。
MX8 Plusは、特にEIおよびAPCI向けに設計されています。OEMによるリップル・出力電圧等の仕様変更も容易に調整できます。
用途
- 質量分析
- キャピラリ電気泳動
- 静電印刷
Specifications
(Ref. 128067-001 REV. J)
SPECIFICATIONS
Input Voltage:
+24Vdc, ±10%
Input Current:
<0.5A nominal continuous
<1.2A peak during reversing
Output Voltage:
0V to ±8kV (Linearity not guaranteed below 200V. Maximum offset ±20V when programmed to zero or disabled using remote enable.)
Output Current:
0 to 100µA max
Output Polarity:
Remotely reversible via TTL logic signal
Polarity Reversal Time:
<25ms from change of polarity command to 90% of output into 100pF load capacitance. (Unit incorporates circuitry to minimize the effects of low programmed current on reversing time. Polarity reversal time applies when current is programmed to 3μA or above.)
Voltage and Current Regulation:
Line: <0.1% for ±10% input voltage change
Load: <0.1% for 0 to full load
Ripple:
<0.1% p-p @ 100μA
Temperature Coefficient:
≤ 100ppm per degree C
Environmental:
Temperature Range:
Operating: 5°C to 45°C
Storage: -35°C to 85°C
Humidity:
10% to 85%, non-condensing
Stability:
<0.05% per hour after 1 hour warm up
Protection:
Arc and short circuit protected
Output Voltage Limit:
Output voltage must not exceed ±8kV ±250V under any input or output conditions
Dimensions:
1.48. H X 3.23. W X 9.45. D (37.6mm X 82mm X 240mm)
Weight:
2.4 pounds (1.1kg)
Input Connector:
14 way Molex receptacle p/n 39-01-2140. Cable length 508mm, mating connector not provided
Output Connector:
Alden F303RX, mating connector not provided
Regulatory Approvals:
UL/CUL recognized, File E354595. Compliant to EEC Low Voltage Directive. UK Conformity Assessed. RoHS Compliant.
MX8 PLUS - POWER AND CONTROL 14 PIN MOLEX MINI-FIT JR RECEPTACLE
| Pin | Signal |
|---|---|
| 1 | +24Vdc Input |
| 2 | Ground return for +24Vdc Input |
| 3 | Enable/Inhibit input. TTL high is enabled, TTL low is disabled (see Note 1) |
| 4 | Output voltage monitor. 0 to +8V for 0V to ±8kV output. Accuracy ±1% |
| 5 | Voltage control input. 0 to +8V for 0V to ±8kV output. Accuracy ±1% |
| 6 | Current monitor output. 0 - 10V for 0A to 100μA. Accuracy ±2% |
| 7 | Current control input. 0 to +10V for 0A to 100μA. Accuracy ±1% |
| 8 | Polarity control input. TTL high is positive, TTL low is negative (see Note 1) |
| 9 | Analog Ground |
| 10 | Current/Voltage control indicator. TTL compatible output (3.3V max). TTL high when in current mode. TTL low when in voltage mode. |
| 11 | N/C |
| 12 | N/C |
| 13 | N/C |
| 14 | N/C |
Note 1: TTL input. The threshold is set to 1.65V for use with 3.3V or 5V input levels although the input will tolerate up to 15V being applied
| How to Order: |
|---|
| Standard: PART NO.:MXP8PN24 |
Tables & Diagrams
DIMENSIONS: in.[mm]

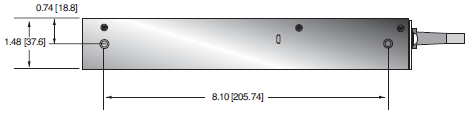

SIDE VIEW

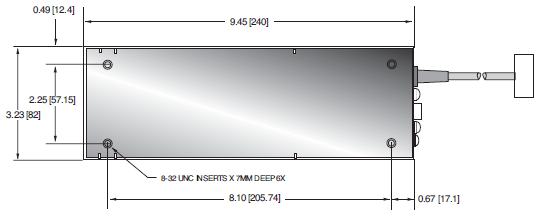

TOP VIEW
FRONT VIEW
