SERIE MNX
- 50 kV con 50 W o 75 W máximos
- 65 kV con 65 W máximos
- Alimentación de filamento flotante integrada
- Control de emisión local y remoto
- Opción de interfaz digital
*Nota: Todas las especificaciones están sujetas a cambios sin previo aviso. Consulte la versión en PDF en inglés de esta hoja de datos para obtener la revisión más actualizada.
GENERADORES DE RAYOS X INDUSTRIALES DE 50 W-75 W
La serie MNX es el resultado de las técnicas de fabricación excepcionales de empaquetado de alto voltaje y montaje superficial de Spellman en conjunto con su tecnología de encapsulamiento de diseño propio, lo cual produce el diseño ultra compacto de este módulo generador de rayos X. La MNX energiza tubos de rayos X con cátodo aterrizado de distintos fabricantes reconocidos, con una capacidad de salida de alto voltaje de 0 kV a 50/65 kV a 2 mA, limitada a 50 W, 65 W o 75 W. La MNX utiliza un circuito de control de filamento de lazo cerrado para proporcionar una corriente de haz altamente regulada. La fuente del filamento de CD de bajo ruido con referencia a tierra opera entre 0.3 A y 3.5 A. Ofreciendo una regulación precisa, altamente estable y de bajo rizo, la MNX proporciona a los usuarios el control analógico local y remoto para ajustar el voltaje del haz, la corriente de emisión y el límite de la corriente del filamento.
Aplicaciones típicas:
Suministro de energía para tubos de rayos X de cátodo aterrizado para Kevex, Oxford, RTW, Superior, Varex, Petrick y Trufocus.
Especificaciones
(Ref. 128023-001 REV. AE)
Input Voltage:
+24Vdc ±10%, for 50W or 75W units
+24Vdc ±1V, for 65kV @ 65W unit
Input Current:
MNX50P50: 4.0 amps, maximum
MNX50P75: 6.0 amps, maximum
MNX65P65: 5.0 amps, maximum
GB Option: 1.0 amp additional, maximum
Efficiency:
80-85%, typical
Output:
0 to 50kV at 0 to 2mA, limited to a maximum of 50 watts or 75 Watts. 0-65kV at 2mA limited to 65 Watts.
Voltage Control:
Local: Internal multi-turn potentiometer to set voltage from 0 to full output voltage.
Remote: 0 to +10Vdc proportional from 0 to full output voltage. Accuracy: ±1%. ZIN: 10Mohm.
Emission Control:<
Local: Internal potentiometer to set beam current between 0 and full output current.
Remote: 0 to +10Vdc proportional from 0 to full output current. Accuracy : ±1%. ZIN: 10Mohm. Filament limit and filament preheat control capability is also provided.
DC Filament Supply:
Current: 3.5A, adjustable limit
Voltage: 5.0 volt limit
Voltage Regulation:
Load: 0.01% of output voltage no load to full load.
Line: ±0.01% for ±10% change in input voltage.
Current Regulation:
Load: 0.01% of output current from 0 to rated voltage.
Line: ±0.01% for ±10% change in input voltage.
Ripple:
0.1% p-p of maximum rated output voltage, 50kV units (50/75W)
0.1% rms maximum rated output voltage, 65kV units (65W)
Environmental:
Operational: 0°C to +50°C
Storage: -40°C to +85°C
Humidity: 0% to 90%, non-condensing
Temperature Coefficient:
0.01% per °C, voltage and current.
Stability:
0.05% per 8 hours after 1/2 hour warm-up.
Voltage and Current Monitors:
0 to +10Vdc proportional from 0 to rated output. Accuracy ±1%.

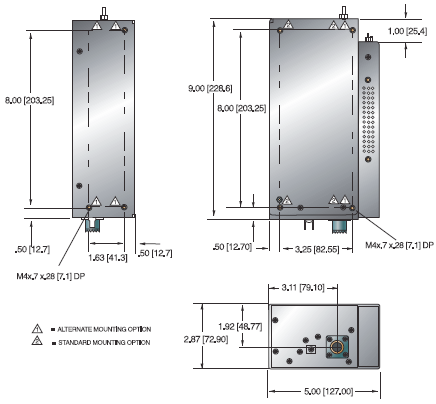

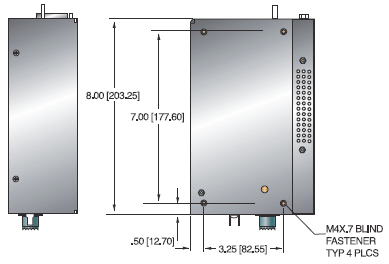

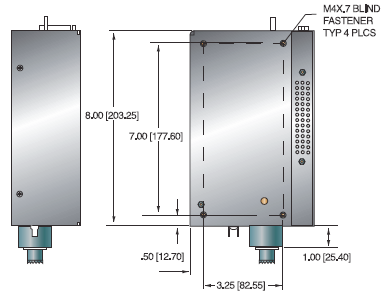

Dimensions:
50kV Unit: 5.00”H x 2.87”W x 8”D (127.00mm x 72.90mm x 203.25mm)
65kV Unit: 5.00”H x 2.87”W x 9”D (127.00mm x 72.90mm x 228.65mm)
XCC Option: 5.00”H x 2.87”W x 9”D (50/75W units only) (127.00mm x 72.90mm x 228.65mm)
Weight:
6.5 lbs. (2.9kg)
Regulatory Approvals:
Compliant to EEC EMC Directive. Compliant to EEC Low Voltage Directive. UL/CUL recognized, File E227588; MNX65P65 is not UL/CUL recognized. RoHS Compliant
OPTIONS
XCC - XRM Compatible HV Cable (50kV only)
5VPM - 0 to 5 Volt Programming and Monitor Scaling
5302 - Mammoflex HV cable for MNX
2001 - Mammoflex HV cable for MNX w/XCC option
J2 POWER INPUT CONNECTOR
| Pin | Signal | Parameter |
|---|---|---|
| 1 | +24V Input | +24 volts @ 5A, max. |
| 2 | 24V Return (Gnd.) | Power Ground |
J3 FILAMENT CONNECTOR
| Pin | Signal | Parameter |
|---|---|---|
| 1 | Filament Out | 0.3A to 3.5A, 5 volt, max. |
| 2 | Filament Return | Filament Ground |

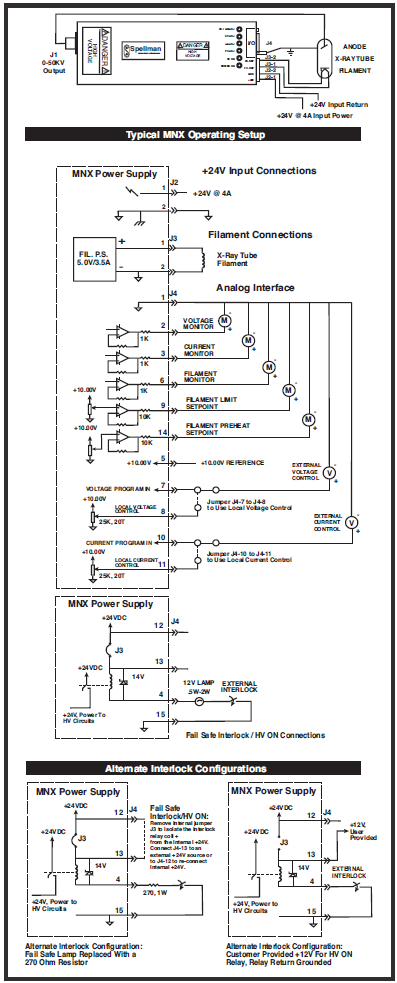

J4 ANALOG INTERFACE CONNECTOR MALE 15 PIN MINI "D"
| Pin | Signal | Parameters |
|---|---|---|
| 1 | Monitor Return | Signal Ground |
| 2 | Voltage Monitor | 0-10 volts = 0 to full scale, Zout=1KΩ |
| 3 | Current Monitor | 0-10 volts = 0 to full scale, Zout=1KΩ |
| 4 | Interlock Output | Connect 12V HVON bulb to pin 15 to enable |
| 5 | +10 Volt Reference | +10 Volts at 1mA, maximum |
| 6 | Filament Monitor | 1 volt = 1 amp, Zout=1KΩ |
| 7 | Voltage Program Input | 0-10 volts = 0 to full scale, Zin=10MΩ |
| 8 | Local Voltage Program* | 0-10 volts, screwdriver adjust |
| 9 | Filament Limit Setpoint* | 1 volt = 1 amp, screwdriver adjust |
| 10 | Current Program Input | 0-10 volts = 0 to full scale, Zin=10MΩ |
| 11 | Local Current Program* | 10 turn pot, screwdriver adjust |
| 12 | Not used (+24V Out for Interlock) | (Optional Interlock configuration) |
| 13 | Not used (Interlock Coil) | (Optional Interlock configuration) |
| 14 | Filament Preheat Setpoint* | 1 volt = 1 amp, screwdriver adjust |
| 15 | Interlock Return | Interlock Ground |
*Denotes 10 turn potentiometer located on front panel
J1 HIGH VOLTAGE OUTPUT CONNECTOR
Spellman drywell type detachable connector.
Standard: A one meter (39.4”) long polyethylene mating high
voltage cable is provided.
5302: A one meter (39.4”) long Mammoflex mating high voltage
cable is provided, SHV p/n 201946-007
2001: A one meter (39.4”) long Mammoflex mating high voltage cable
is provided, compatible with the XCC Option SHV p/n 201946-002
Drywell connector depth:
voltage cable is provided.
50kV: 7.25˝
65kV: 8.25˝
XCC Option: 8.25˝
| How to Order: |
|---|
|
Sample model number: |
| Options are added to the model number as follows: MNX50P50/XCC |
