DXM Sub System
- Tubo, generador, cable(s) de alto voltaje, enfriador... totalmente integrado y probado en Spellman High Voltage
- Listo para el montaje fuera de la caja; "Plug And Play
- Cables, mangueras, accesorios, todo parte del sistema empaquetado.
- Una orden de compra
- Una llamada telefónica a Spellman para pedir apoyo
- La garantía de 2 años para el sistema supera la de los componentes/ensamblajes individuales subcontratados. La garantía del tubo de rayos X está prorrateada.
*Nota: Todas las especificaciones están sujetas a cambios sin previo aviso. Consulte la versión en PDF en inglés de esta hoja de datos para obtener la revisión más actualizada.
Subsistema DXM
Sistema emparejado, integrado, probado y garantizado... todo de una sola fuente
Los subsistemas de la serie DXM de Spellman están diseñados específicamente para aplicaciones de imágenes NDT de baja potencia, como la inspección de procesos alimentarios, la fabricación y el empaque farmacéutico y la inspección de componentes electrónicos, por nombrar algunas.
Los subsistemas de rayos X DXM y las fuentes de alimentación de alto voltaje DXM establecen el estándar para los requisitos compactos de inspección de rayos X de alto rendimiento de 0,3 kW a 1,2 kW. Con un voltaje de salida de 160 kV, uno de nuestros subsistemas llave en mano DXM160 se muestra aquí.
Performance.
LOW RIPPLE... HIGH STABILITY
Industry best stability and output ripple specification provide consistent output (kV & mA) for longer scans, reduced banding and improves data quality.
FAST RAMP UP TIME SPECIFICATIONS
Ramp time is user adjustable through
the proprietary DXM GUI control.
FILAMENT CONFIGURATION
Closed loop emission control regulates filament setting to provide desired X-Ray tube emission current. Either a floating filament or ground referenced filament available.
Reliablility.
DESIGN VALIDATION
Industry leading reliability and MTBF. Environmental stress screening,
electrical overstress, extended arcing and HALT compliance. Testing conducted on X-Ray tube loads and beta testing in multiple applications.
ENCAPSULATION
The DXM’s oil free design eliminates leaks and environmental concerns.
The encapsulated dielectric high voltage section made of our proprietary large-pour formulation provides significantly higher dielectric strength than oil, is more forgiving of field stresses, and eliminates the maintenance and biohazards associated with oil tanks.
Flexibility.
COMPACT & LIGHTWEIGHT
The DXM Series small footprint and lightweight offer additional flexibility and logistical options.
PLUG-N-PLAY COMPATIBILITY & EASE OF USE
DSP
based SMT control circuitry provides your choice of USB, Ethernet and RS-232 along with analog interfaces simplifying OEM system integration.
SERVICEABILITY
The DXM Series has a unique modular design, with four Field-Replaceable Units (FRUs) that minimize MTTR, service
inventory and overall repair cycle time.
Global technical support ensures swift response to any service requests.
Let us configure a custom DXM Sub System for your application
DXM X-Ray Generators
- From 20kV-160kV, 300W, 600W and 1200W
- Universal Input, power factor corrected
- Hot anode or hot cathode X-Ray tube capable
- CE Compliant, UL Recognized and RoHS Compliant
- User programmable arc detect feature

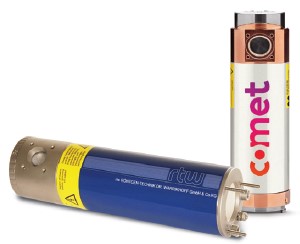

Metal Ceramic X-Ray Tubes
- From 20kV-160kV, 300W, 600W and 1200W
- Universal Input, power factor corrected
- Hot anode or hot cathode X-Ray tube capable
- CE Compliant, UL Recognized and RoHS Compliant
- User programmable arc detect feature
Industrial X-Ray Tube Coolers
- From 20kV-160kV, 300W, 600W and 1200W
- Universal Input, power factor corrected
- Hot anode or hot cathode X-Ray tube capable
- CE Compliant, UL Recognized and RoHS Compliant
- User programmable arc detect feature
HV X-Ray Cables
- From 20kV-160kV, 300W, 600W and 1200W
- Universal Input, power factor corrected
- Hot anode or hot cathode X-Ray tube capable
- CE Compliant, UL Recognized and RoHS Compliant
- User programmable arc detect feature
Optional GUI Control Software
- From 20kV-160kV, 300W, 600W and 1200W
- Universal Input, power factor corrected
- Hot anode or hot cathode X-Ray tube capable
- CE Compliant, UL Recognized and RoHS Compliant
- User programmable arc detect feature
